Bronze Y Type Strainer Screwed

  • Y Type Strainer
  • Bronze body
  • 0.5mm screen mesh
  • Screwed BSPP
  • Sizes: 1/4" to 4"
From £11.10
SKU: YS5036 Availability: Available
In stock
SKU YS5036

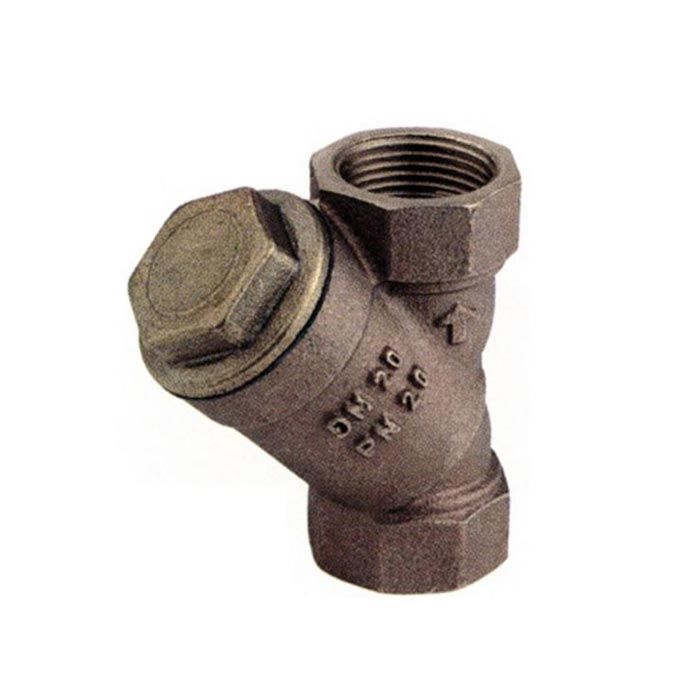

Bronze Y Type Strainer Screwed

Our Bronze Y Type Strainer Screwed is compact, easy to clean and features a removable drain plug and Stainless Steel screen mesh. It provides an economical solution and is recommended for applications where damage to valves and other related mechanical equipment needs to be avoided.

Pipeline debris including dirt and scale is often the cause of failure, damage, energy loss and a reduction in productivity.

Key features:

  • Available in BSPP, sizes: 1/4" to 4".
  • Screen mesh size: 0.5mm.
  • Temperature range: Up to 110°C .
  • Pressure rating: 16 Bar.

The installation of a strainer is always recommended to ensure trouble-free service.

Download our technical PDF datasheet here

More Information
End Connection BSP
Body Material Bronze
Size 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Filtration 0.5mm (Mesh 38)
Design Y Type
Industry / Approvals Liquid
Manufacturer VOLT

The following downloads are available for the Bronze Y Type Strainer Screwed:

Bronze Y Type Strainer Screwed Datasheet
