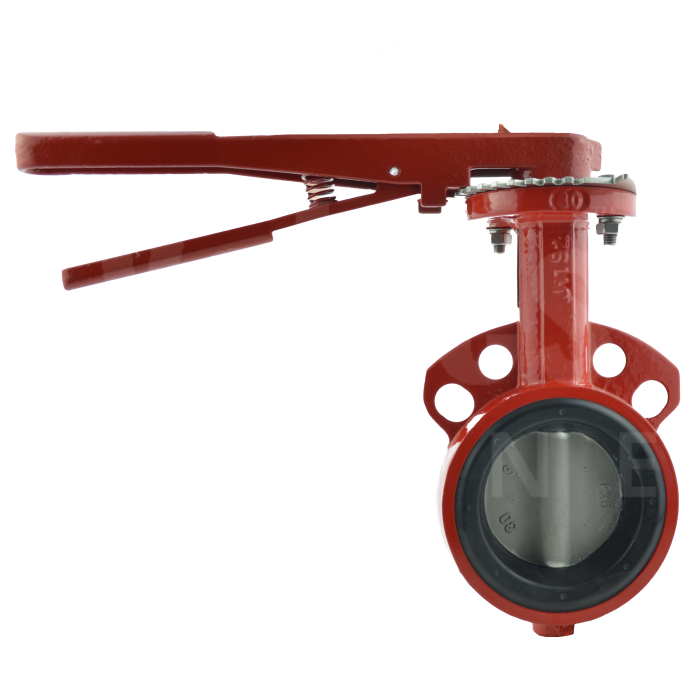

Bray Series 30 Wafer Butterfly Valve - 316 Stainless Steel Disc

SKU
BR0330

4 - 5 Days

Key Features
  • Bray Series 30 Butterfly Valve
  • 316 Stainless Steel Disc
  • Cast Iron body
  • Wafer Pattern
  • Lever or Gearbox Operator
  • EPDM, NBR (BUNA) or FKM liner
  • Sizes: 2" to 12"
  • Pressure rating: 12 Bar

Details

Bray Series 30 Wafer Butterfly Valve - 316 Stainless Steel Disc

Bray Series 30 butterfly valve with stainless steel disc is a resilient seated wafer pattern butterfly valve featuring an epoxy coated Cast Iron body, 316 Stainless Steel disc and EPDM, NBR (BUNA) or FKM liner.

Bray butterfly valves benefit from high strength through-stem design, allowing easy disassembly of the valve and reduced disc to stem failure.

Supplied with either a Trim 007 hand lever or Type S04 hand wheel operated gearbox.

Key features:

  • Lever or Gearbox operator
  • Sizes: 2" to 12"
  • Wafer Pattern
  • Cast Iron Body
  • 316 Stainless Steel Disc
  • EPDM, NBR (BUNA) or FKM liner
  • Temperature range: -29°C to 140°C (subject to configuration)
  • Pressure rating: 12 Bar
This Bray Series 30 Cast Iron Butterfly Valve is configurable to the following trim codes: 169, 170, 734.

For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)

Datasheet:

 Download our technical PDF datasheet here

 Download the Bray series 30/31 Dimensions sheet

Technical Attributes

Design Wafer
Flange Accommodation PN16, ANSI 150
Body Material Cast Iron
Size 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Disc Material Stainless Steel 316L
Liner EPDM, NBR (BUNA), FKM Viton
Manufacturer Bray
Main Features
  • 2" to 12"
  • EPDM, NBR (BUNA) or FKM liner
  • Up to 12 Bar Rated
