  • Bray Butterfly Valve Series 40 Double Offset High Temperature

Bray Butterfly Valve Series 40 Double Offset High Temperature

  • Bray Butterfly Valve Series 40
  • Double Offset
  • To fit between PN16 and ANSI 150 flanges
  • Carbon Steel or Stainless Steel body
  • RTFE seat
  • Sizes 2 1/2" to 6" (Lever) and 2 1/2" to 12" (Gearbox)
  • Suitable for high temperature critical service applications up to 250°C
From £503.00
SKU: BR0340 Availability: Available
In stock
SKU BR0340

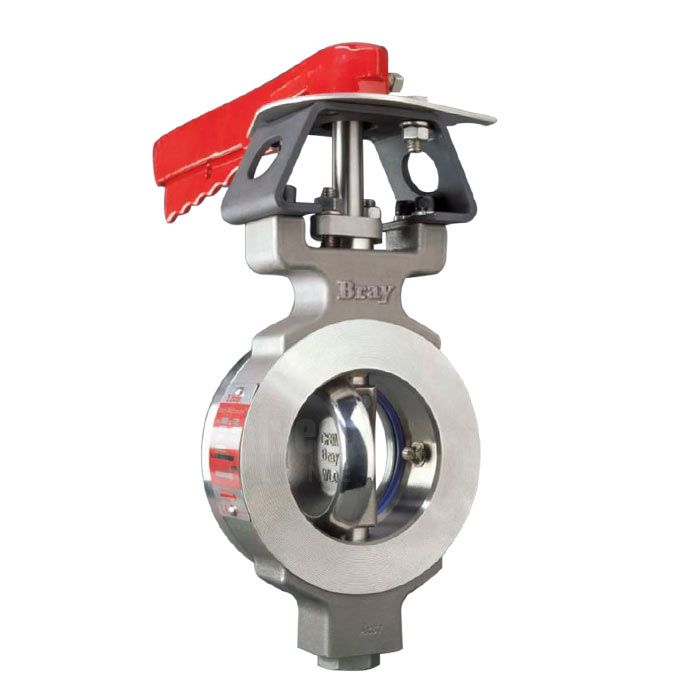

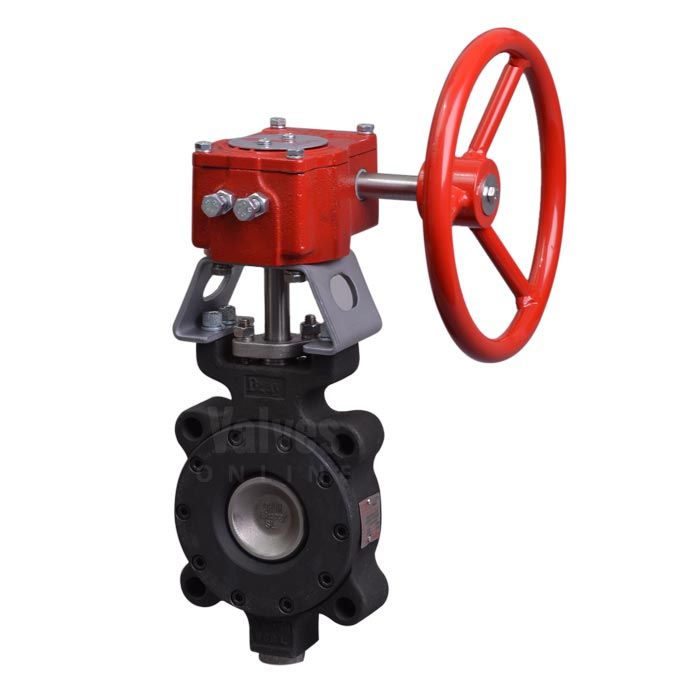

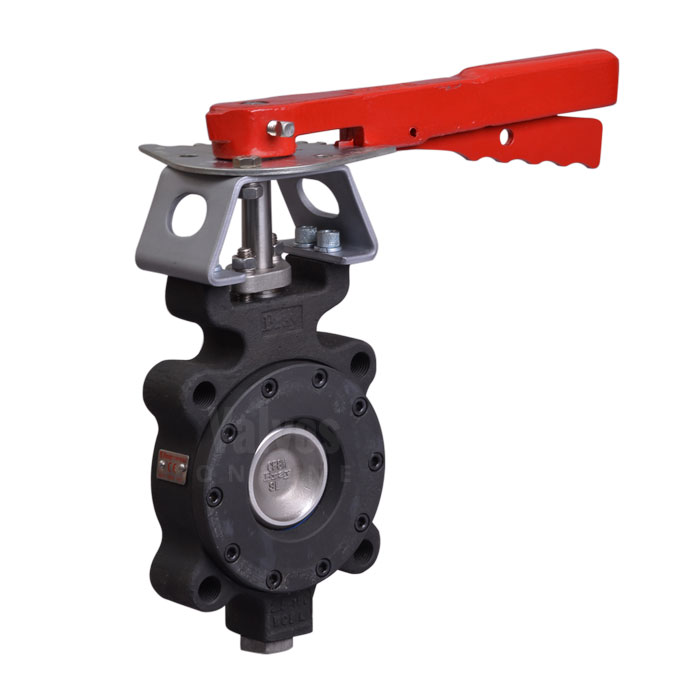

Bray Butterfly Valve Series 40 Double Offset High Temperature

Bray's Butterfly Valve Series 40 Double Offset High Temperature is suitable for high temperature critical service applications up to 250°C; an innovative design butterfly valve for arduous duties delivering reliability and ease of maintenance. A wafer pattern, high performance butterfly valve featuring a Carbon Steel or Stainless Steel body and RTFE seat, providing zero leakage.

Bray high performance butterfly valves offer a lightweight and simple to install alternative to more tradition, bulkier designs including ball and globe valves.

Suitable to fit between PN16 and ANSI 150 flanges.

Key features:

  • Available in Carbon Steel or Stainless Steel, sizes: 2 1/2" to 6" (Lever) and 2 1/2" up to 12" (Gearbox).
  • Temperature range: -29°C to 250°C (subject to the process pressure).
  • Pressure rating: Class 150.
  • Supplied with lever operator.

For full technical specifications please download the accompanying datasheet. Larger sizes available upon request. (POA)

Download our technical PDF datasheet here

More Information
Design Wafer, High Temperature, Double Offset High Performance
Flange Accomodation PN16, ANSI 150
Body Material Stainless Steel, Carbon Steel
Size 2 1/2" (DN65), 3" (DN80), 4" (DN100), 5" (DN125), 6" (DN150), 8" (DN200), 10" (DN250), 12" (DN300)
Disc Material Stainless Steel
Liner RTFE
Industry / Approvals HVAC
Manufacturer Bray

The following downloads are available for the Bray Butterfly Valve Series 40 Double Offset High Temperature:

Bray Butterfly Valve Series 40 Double Offset High Temperature Datasheet
