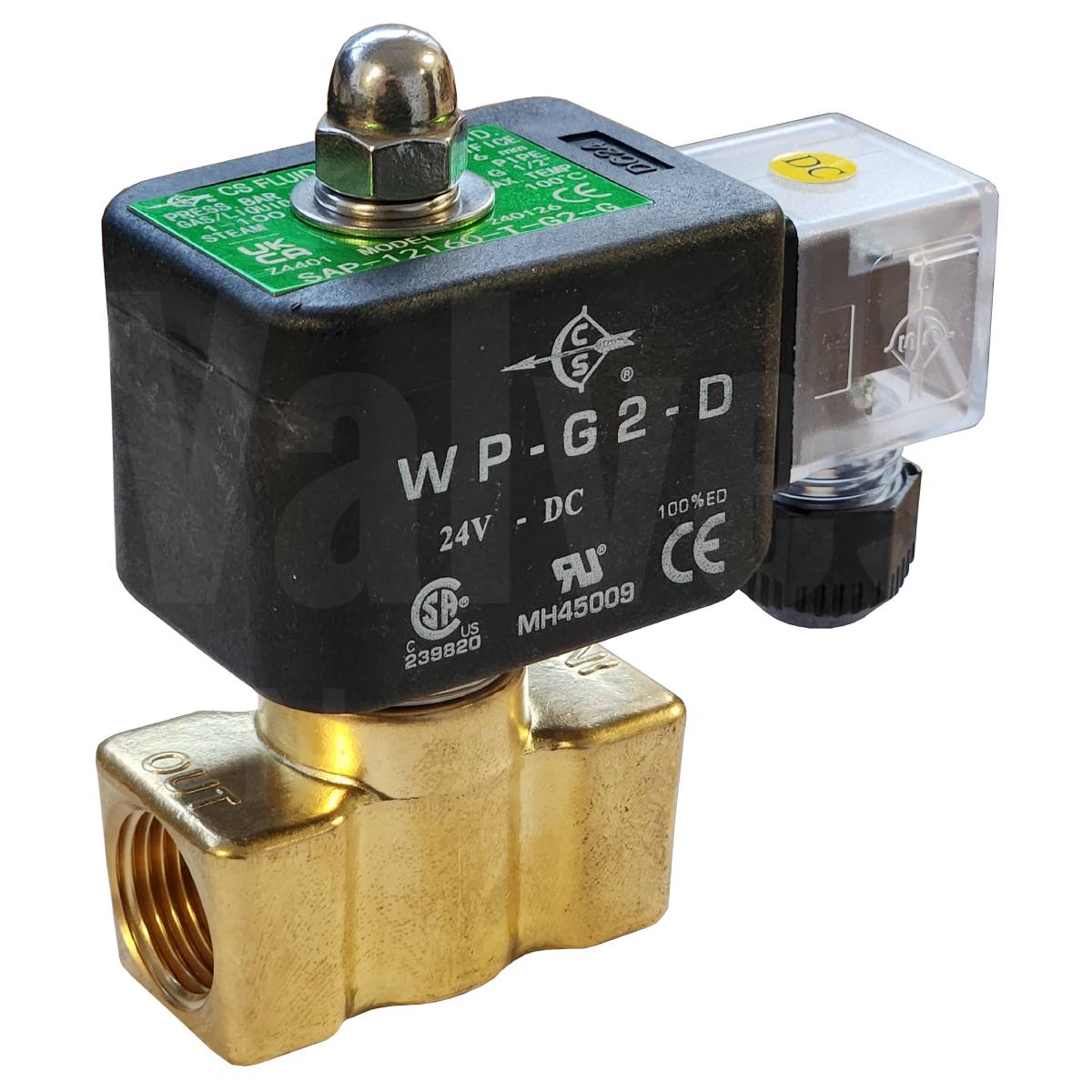

Brass Solenoid Valve 1-100 Bar Rated High Pressure 1/8" - 3/8"

  • Servo assisted, normally closed
  • Brass body
  • PTFE seals
  • Sizes: 1/8" - 3/8
  • Media temperature: 120 °C
  • Pressure range 1-100 Bar
  • Voltage: 24V DC, 24V AC, 110V AC and 230V AC
  • Suitable for use with neutral air, gasses such as compressed air and natural gas, light oils and water
From £105.80
SKU: SV5224 Availability: Available
In stock
SKU SV5224

Brass Solenoid Valve 1-100 Bar Rated High Pressure 1/8" - 3"

Our Brass Solenoid Valve 1-100 Bar Rated High Pressure 1/8" - 3/8" is suitable for use with neutral air, gasses such as compressed air and natural gas, light oils and water.

A normally closed, 1-100 Bar rated servo assisted solenoid valve consisting of a Brass body and PTFE seals.

Key features:

  • Media: Air, water light oil, gas and vacuum.
  • Available in sizes: 1/8" to 3/8"
  • Voltage: 24V DC, 24V AC, 110V AC and 230V AC.
  • Ambient temperature: 0 °C to +50 °C
  • Media temperature: 120 °C (PTFE) .
  • Operating pressure: *subject to selection.

Supplied with cable plug.

Download the PDF datasheet for the Brass Solenoid Valve 1-100 Bar Rated High Pressure 1/4".

*To help you select the correct solenoid valve please use the data found on our Technical Information tab.

More Information
Process / Industry High Pressure
Body Material Brass
Design 2 Way
Port Size 1/8", 1/4", 3/8"
Manufacturer VOLT

The following downloads are available for the Brass Solenoid Valve 1-100 Bar Rated High Pressure:

Brass Solenoid Valve 1-100 Bar Rated High Pressure Datasheet

Select your solenoid valve using the following information:

Port:Orifice:Kv (Ltr / Min)Min Pressure Rating (Bar)Max Pressure Rating (Bar)
1/8" 5mm 7.2 1 100
1/4" 5mm 7.2 1 100
3/8" 5mm 7.2 1 100
