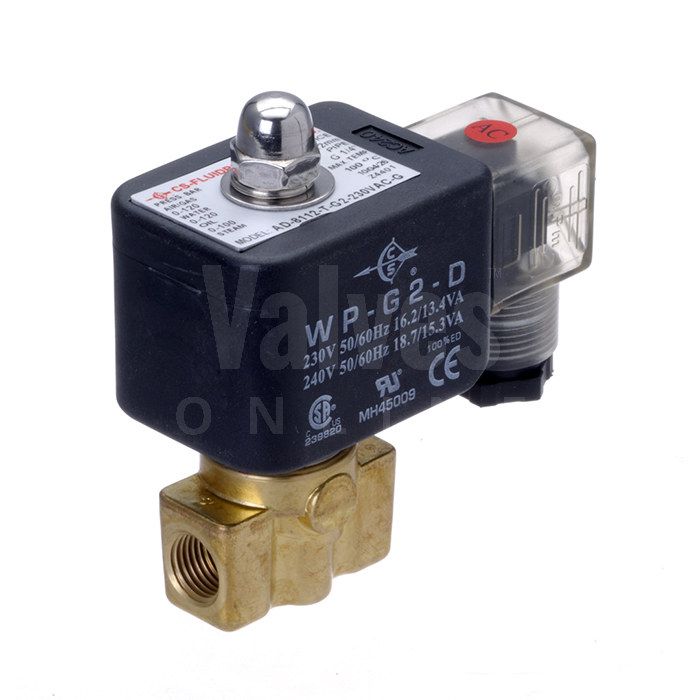

Brass Solenoid Valve 0-120 Bar Rated High Pressure - Size: 1/4"

SKU
SV5223

in-stock Available to Order

Key Features
  • VOLT Brass High Pressure Solenoid Valve
  • Direct Acting, Normally Closed (NC)
  • Brass Body
  • PTFE Seals up to 180°C
  • Size: 1/4" BSPP
  • Media temperature: 180°C
  • Pressure rating up to 0-120 Bar
  • Voltage: 24V DC, 24V AC, 110V AC & 230V AC
  • Suitable for use with gasses such as compressed air and natural gas, light oils and water
  • IP65 Rated

Details

Brass Solenoid Valve 0-120 Bar Rated High Pressure 1/4"

Our Brass High Pressure Solenoid Valve is rated up to 0-120, see selctor.

It is available in 1/4" screwed BSPP and is suitable for use with gasses such as compressed air and natural gas, light oils and water.

A normally closed function, 0-120 Bar rated direct acting solenoid valve, which allows the valve to operated from zero pressure and consists of a Brass body and PTFE seals.

Key Features:

  • Direct Acting
  • Normally Closed
  • Brass Body
  • Screwed BSPP
  • Media: Air, water, light oil, gas and vacuum.
  • Available in sizes: 1/4"
  • Voltage: 24V DC, 24V AC, 110V AC and 230V AC.
  • Ambient temperature: 0 °C to +50 °C
  • Media temperature: 180 °C (PTFE).
  • Operating pressure: *subject to selection.
  • Supplied with cable plug.

Datasheet:

 Brass Solenoid Valve 0-120 Bar Rated High Pressure Datasheet

*To help you select the correct solenoid valve please use the data found on our Technical Information tab.

Technical Attributes

Process / Industry High Pressure
Body Material Brass
Design 2 Way
Function Normally Closed
Port Size 1/4"
Seal Material PTFE
Voltage 24V DC, 24V AC, 110V AC, 230V AC
Manufacturer VOLT
