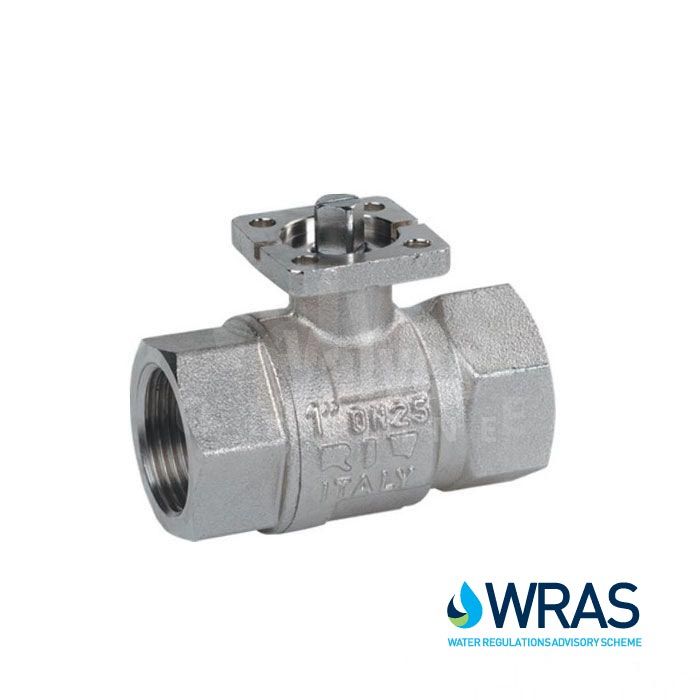

Brass Ball Valve DM WRAS Approved

  • Direct Mount WRAS Approved Ball Valve
  • Brass Nickel plated body
  • PTFE seals
  • Screwed BSPP end connections
  • Direct Mount ISO 5211 top
  • Sizes: 1/4" to 4"
  • WRAS Approved (1/2" to 2")
From £14.90
SKU: BV5070 Availability: Available
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"
2 1/2"
3"
4"
▲ Please Select Options Above ▲

Brass Ball Valve DM WRAS Approved

Our Brass Ball Valve DM WRAS Approved is suitable for a range of media and applications; mixing, diverting, compressed air, water and HVAC. A full bore, screwed BSPP manual valve featuring a direct mount ISO 5211 top connection for easy actuation.

Key features:

  • Available in sizes: 1/4" to 4".
  • Brass Nickel plated body with PTFE seals.
  • Temperature range: -20°C to 160°C (1/4" and 3/8"), -20°C to 95°C (1/2" to 2") and -10°C to 100°C (2 1/2" to 4").
  • Pressure rating: PN40 (1/4" to 2 1/2"), PN25 (3") and PN16 (4").
  • WRAS approved 1/2" to 2" only.
  • Movement: 90°C turn.

Approval

This product has been examined, tested and found, when correctly installed, to comply with the requirements of the United Kingdom Water Supply (Water Fittings) Regulations and Scottish Water Bylaws.

A valid certificate and approval number can be obtained upon request.

Datasheet:

 Brass Ball Valve DM WRAS Approved Datasheet

More Information
Manufacturer VOLT
End Connection BSP
Body Material Brass
Seat Material PTFE
Size 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100)
Design Full Bore, Female x Female
Industry / Approvals WRAS, HVAC
Lever No Lever - Bare Stem
Temperature Range -20°C to 160°C (1/4" and 3/8"), -20°C to 95°C (1/2" to 2"), -10°C to 100°C (2 1/2" to 4")
Pressure Up to: PN40 (1/4" to 2 1/2"), PN25 (3"), PN16 (4")
Actuatable? Yes - ISO Direct Mount Pad

The following downloads are available for the Brass Ball Valve DM WRAS Approved:

 Brass Ball Valve DM WRAS Approved Datasheet

 Brass Ball Valve DM WRAS Approved - WRAS Approval Certificate

The following approvals are available for the Brass Ball Valve DM WRAS Approved:

 Brass Ball Valve DM WRAS Approved - WRAS Approval Certificate
