Air Actuated Stainless Steel 2-Piece Ball Valve 1/4"-2"

SKU
PA8806

in-stock Available to Order

Key Features
  • Air Operated 2 Piece Ball Valve
  • Quantity Discounts will Apply on this product
  • European Actuator-Single Acting and Double Acting
  • Full bore with excellent flow rates
  • PTFE Seats up to 180°C
  • 2 Piece fully maintainable 1/4” to  2”
  • BSP end connections
  • Stainless Steel Ball Valve
  • 1000 PSI (PN63) Rated

Details

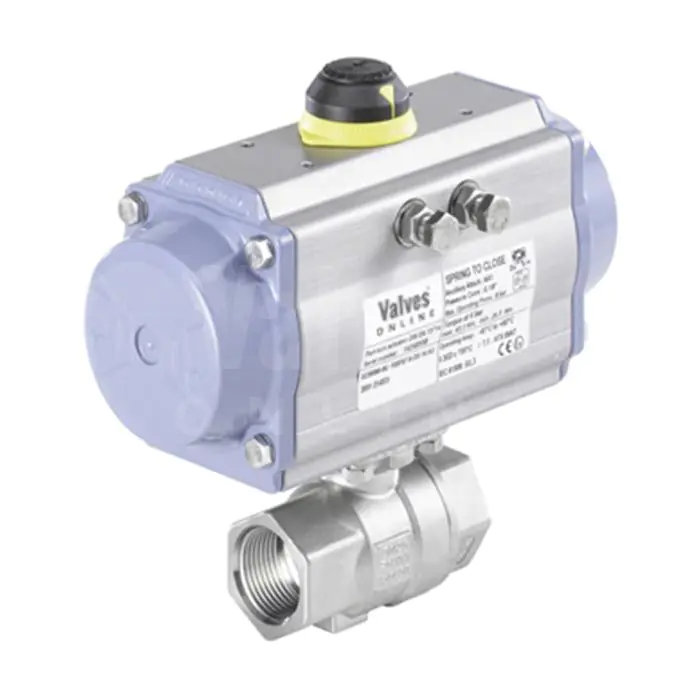

2-Piece Air Operated Stainless Steel Ball Valve

Type 8806 2-Piece stainless steel ball valve with European manufactured pneumatic rotary actuator.

The valve features PTFE Seats for temperatures up to 180°C and PN63 (1000 PSI) Rated.

The actuators are available in single (Spring Return or Spring Open) and double acting operating mode and can be complemented by a side control positioner, a pilot valve and several kinds of position feedback switchboxes and gearbox override. Use the CONFIGURATOR to select your perfect valve.

Key Features:

  • Spring Return, Spring Open & Double Acting Actuator Available
  • 2 Piece, Full Bore
  • A351 CF8M Ball Valve Body & Ball
  • PTFE Seats
  • BSP End Connection
  • Size: 1/4" to 2"
  • 1000 PSI (PN63) Rated

Datasheet:

 Pneumatic Actuated Stainless Steel 2-Piece Ball Valve Datasheet

Technical Attributes

Manufacturer VOLT
End Connection BSP
Body Material Stainless Steel
Seat Material PTFE
Size 1/4" (DN8), 3/8" (DN10), 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50)
Design 2 Piece, Full Bore, Female x Female
Temperature Range Up to 180°C
Pressure Up to: 1000 PSI (PN63) Rated
Actuator Pneumatic Actuator
Actuator Features Spring Return, Spring Open, Double Acting
