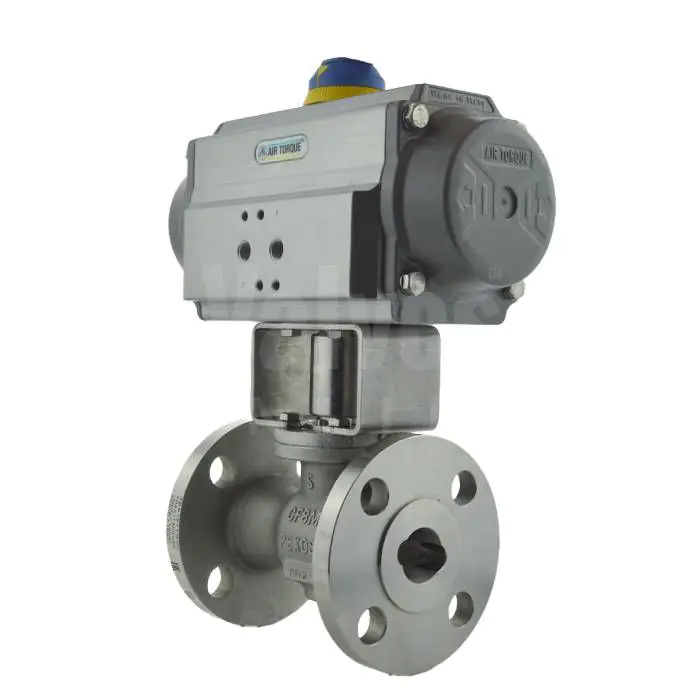

Pneumatic Actuated PEKOS Stainless Steel Reduced bore ANSI 150 Ball Valve

This Air Operated Pekos Fig ZRB 16 TTTGV ANSI 150 Stainless Steel Reduced Bore Ball Valve is a stainless steel 1 piece body, reduced bore ball valve suitable with Air Torque Pneumatic Actuator.

This industry leading ball valve is manufactured to many standards including: API 598,API 6D, BS 6755-1, API 6D, B16.34, ANSI B16.5, ANSI B16.10, ISO 5211 and NACE MR0175 and carries a wide range of approvals including: Fire Safe, TA-Luft, ATEX 94-9EC, API 6D, PED 97/23/CE, SIL 3 Capable and EN161/EN264.

As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.

This pneumatic actuated ball valves can be configured with either double acting or spring return actuator with options for pilot solenoid valve and switchbox.

Key Features:

• Air Torque Pneumatic Actuator
• Stainless Steel Body
• PTFE Seats
• Flanged ANSI 150 Connections
• Reduced Bore
• 1/2" to 8" (Larger sizes available on request)
• Pressure Rated: Class 150
• Temperature Rated: -29°C to 180°C (increased range on request)
• Wide range of approvals and certifications
• 3.1 Material Certification included as standard

Datasheet:

Pekos ANSI 150 Stainless Steel Reduced Bore Ball Valve Datasheet

Air Torque Actuator Datasheet

Switchbox Datasheet

Pilot Solenoid Valve Datasheet
