Pneumatic Actuated PEKOS Carbon Steel Full Bore ANSI 150 Ball Valve

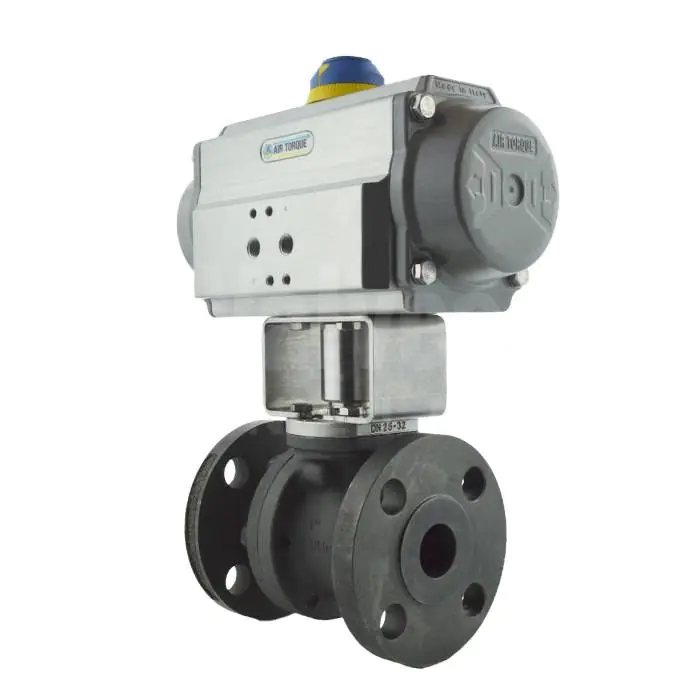

This Air Operated Pekos Fig Z 14 TTTGV ANSI 150 Carbon Steel Full Bore Ball Valve is a Carbon steel, full bore ball valve with Air Torque Pneumatic Actuator.

The valve is a split body meaning it can be easily maintained and full spares kits are available.

This industry leading ball valve is manufactured to many standards including: API 598,API 6D, BS 6755-1, API 6D, B16.34, ANSI B16.5, ANSI B16.10, ISO 5211 and NACE MR0175 and carries a wide range of approvals including: Fire Safe, TA-Luft, ATEX 94-9EC, API 6D, PED 97/23/CE, SIL 3 Capable and EN161/EN264.

As standard we offer this Pekos ball valve with PTFE seats, however a wide range of alternative seats materials are available for different applications (cryogenic, elevated temperature duties etc). If alternative seat/seal materials are required, please get in touch with our sales team for further information.

Available to configure as Double Acting or Spring Return and with Pilot Solenoid Valve and Switchbox.

Key Features:

• Air Torque Pneumatic Actuator
• Carbon Steel Body
• PTFE Seats
• Flanged ANSI 150 Connections
• Full Bore
• 1/2" to 6" (Larger sizes available on request)
• Pressure Rated: Class 150
• Temperature Rated: -29°C to 180°C (increased range on request)
• Wide range of approvals and certifications
• 3.1 Material Certification included as standard



Datasheet:

Pekos ANSI 150 Full Bore Carbon Steel Ball Valve Datasheet

Air Torque Actuator Datasheet

Switchbox Datasheet

Pilot Solenoid Valve Datasheet
