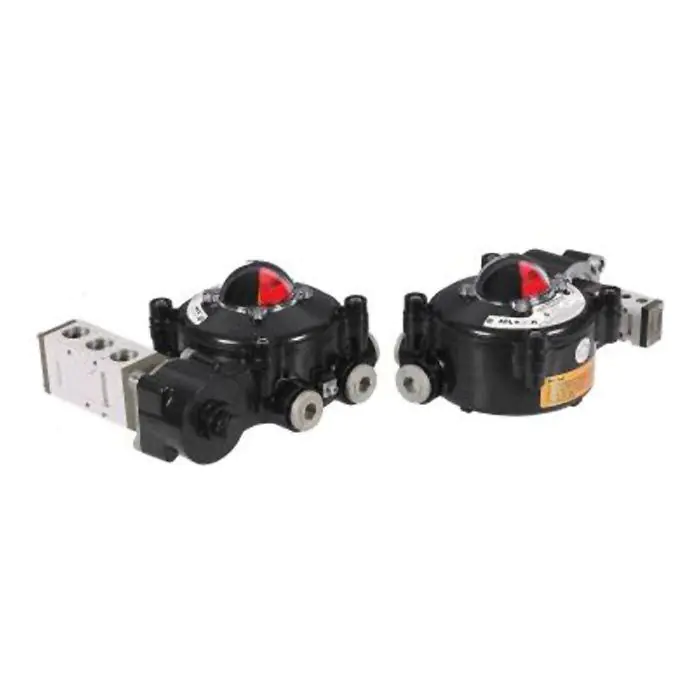

APL 710 ATEX EXD Limit Switchbox with Integral Solenoid Valve

  • ATEX Switchbox with Integral Solenoid Valve
  • IP67 Enclosure
  • ATEX ll 2G Ex d llC T5
  • Beacon Optical Indicator
  • Solenoid Valve Mounted to switchbox
  • Solenoid Valve Voltages: 24VDC, 110VAC & 220VAC
  • Easy to Fit
  • Powder Coated Aluminium Switchbox
From £450.00
SKU: APL-710 Availability: Available
24V DC
110V AC
220V AC
▲ Please Select Options Above ▲

APL 710 ATEX EXD Limit Switchbox with Integral Solenoid Valve

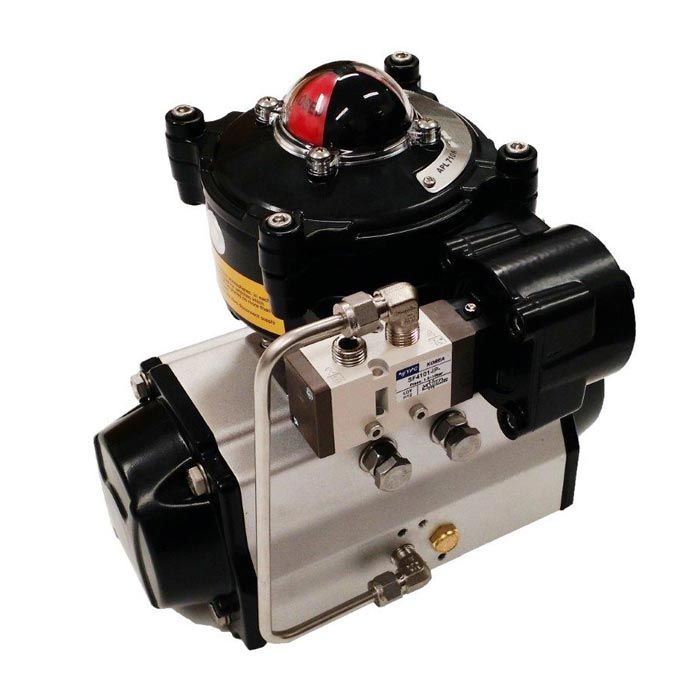

APL 710 ATEX Position Monitoring Limit Switchbox is a rotary type position indicator with integral solenoid valve; designed to integrate a valve and pneumatic actuator with a variety of internal switches or sensors. Suitable for small size pneumatic actuators the ATEX switchbox offers mechanical, low cost single pole, double throw plated contact switching with an operating life of 100,000 cycles.

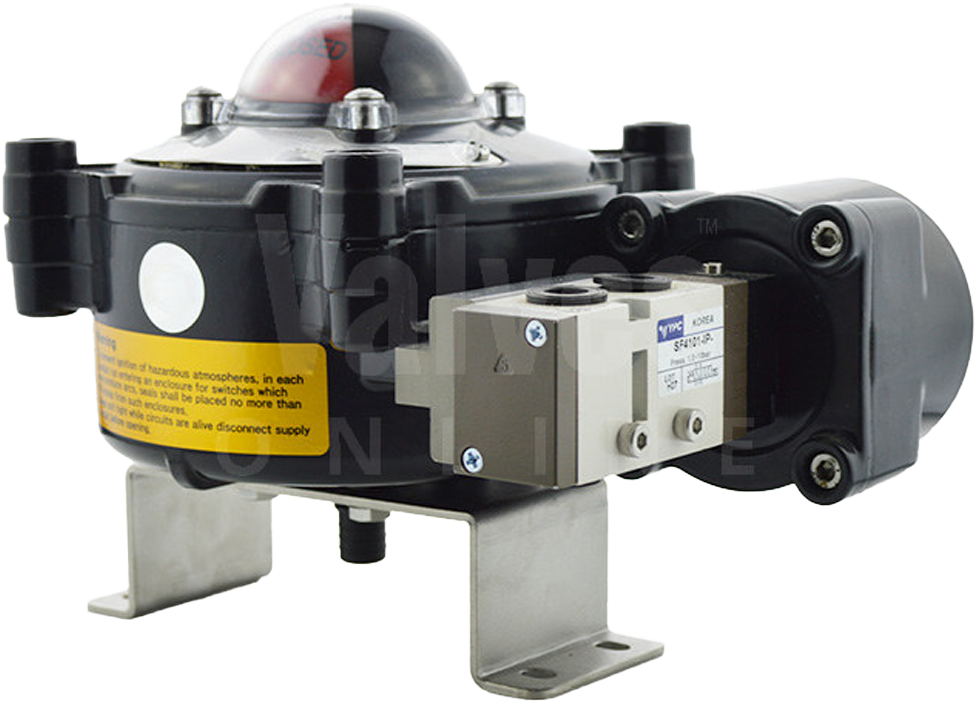

The APL-710 is an Aluminium boded ATEX EXD Switchbox with 2 x V3 limit switches and integral solenoid valve (Mounted to the switchbox).

The major benefit of the APL-710 is the installation cost will be cheaper than using a separate solenoid & switchbox as only one cable is required as the solenoid is powered through the switchbox terminal strip.

APL switchboxes also benefit from hermetically sealed proximity switches.

The APL 710 is rated: ATEX ll 2G Ex d llC T5

Key Features:

  • ATEX Switchbox with Integral Solenoid Valve
  • IP67 Enclosure
  • ATEX ll 2G Ex d llC T5
  • Beacon Optical Indicator
  • Solenoid Valve Mounted to switchbox
  • Solenoid Valve Voltages: 24VDC, 110VAC & 220VAC
  • Easy to Fit
  • Powder Coated Aluminium Switchbox
More Information
Manufacturer HKC
