Images are for illustrative purposes only and may not be an indication of all variations/sizes of the product.

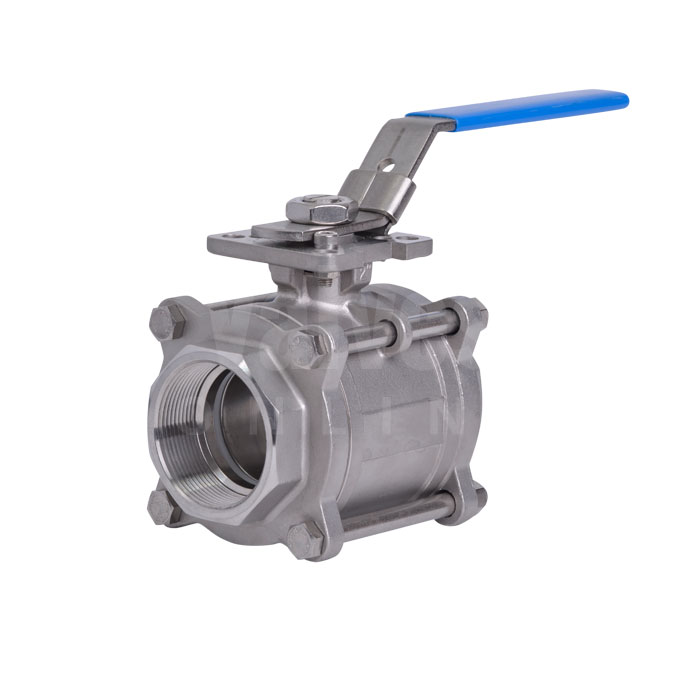

3 Piece Full Bore Direct Mount Ball Valve with TFM1600 seats
SKU
BV5508
£57.75
Available to Order
Compatible file extensions to upload:
Key Features
- 3 piece, full bore, direct mount
- A351 CF8M Stainless Steel Body
- 316 Stainless Steel Ball
- TFM1600 Seats
- 1000 PSI (1/4" to 2")
- 800 PSI (2 1/2" to 4")
- BSP End Connection
- Sizes: 1/4" to 4"
- Bare Stem or Lever Operation
Related Products
HP Pneumatic Actuator
£86.08
VOLT APL Switchbox
£46.20
Mars TSM Extension
£80.03
Namur Pilot Solenoid Valve
£91.25
Details
3 Piece Full Bore Direct Mount Ball Valve with TFM1600 seats
A Stainless Steel full bore ball Valve complete with ISO 5211 direct mounting pad for easy actuation. The valve comprises of an A351 CF8M Body, 316 stainless steel ball and TFM1600 seats with TFM 4215 options on request for higher temperatures.
The valve is a 3 piece fully maintainable unit offered with BSP end connections and options for NPT, Butt Weld and Socket weld (schedule 40) on request. An antistatic device is fitted as standard.
This valve is supplied for actuation however options for lever handles are available. The valve offers safe operation in conjunction with pneumatic or electric automation.
Key Features:
- Three Piece
- Full Bore
- Direct Mount
- Bare Stem or Lever Operation
- A351 CF8M Stainless Steel Body
- 316 Stainless Steel Ball
- TFM1600 Seats
- BSP End Connection
- Sizes: 1/4" to 4"
- 1000 psi rated / PN63 in sizes: 1/4” - 2”
- 800 psi rated / PN55 in sizes: 2 1/2” - 4”
- V sector balls for modulation are available on request
- Repair kits stocked
Technical Attributes
| Manufacturer | VOLT |
|---|---|
| End Connection | BSP |
| Body Material | Stainless Steel |
| Seat Material | TFM1600 |
| Size | 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1 1/4" (DN32), 1 1/2" (DN40), 2" (DN50), 2 1/2" (DN65), 3" (DN80), 4" (DN100) |
| Design | 3 Piece, Full Bore, Female x Female |
| Industry / Approvals | General / Industrial / Process |
| Lever | Lockable Manual Lever |
| Temperature Range | Up to 185°C |
| Pressure | Up to 1000 PSI (1/4" to 2"), Up to 800 PSI (2 1/2" to 4") |
| Actuatable? | Yes - features ISO Direct Mount Pad |
